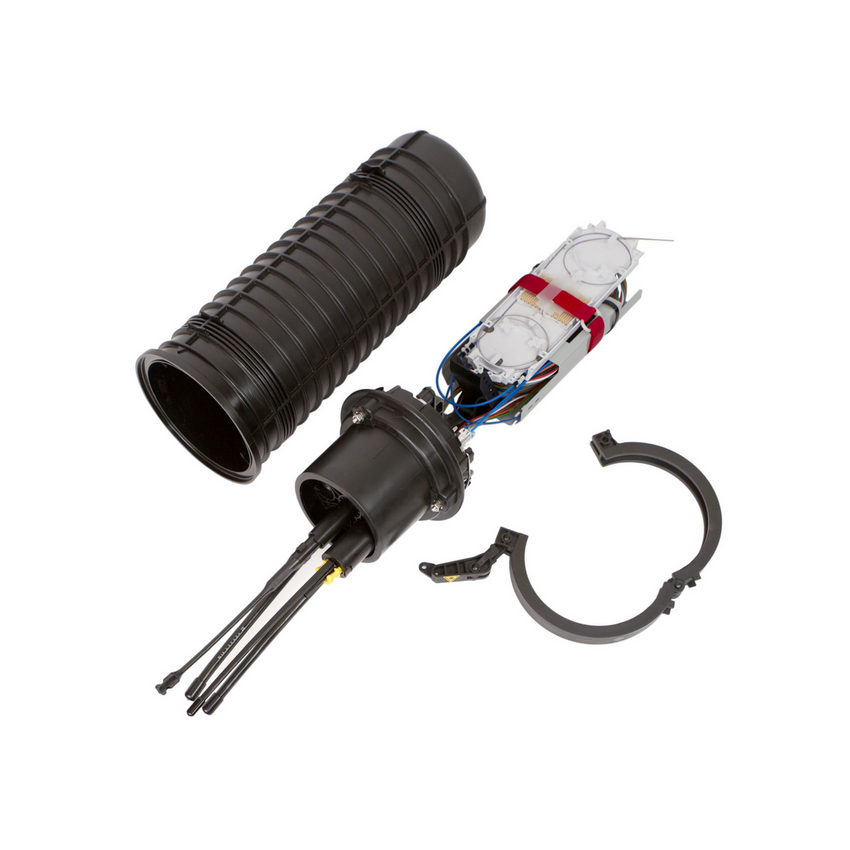

CommScope FOSC 450 A4 Fiber Splice Closure


CommScope FOSC 450 A4 Fiber Splice Closure

$249.00

Features and Benefits

  • Single-ended, O-ring sealed dome closure for splicing feeder and distribution cables

  • Gel cable sealing technology allows easy adding or removing of a wide size range of cables

  • Compatible with most common cable types: e.g. loose tube, central core, ribbon fiber

  • FOSC splice trays hinged for access to any splice without disturbing other trays

  • Closure can be used in aerial, pedestal and underground (up to 5 meters) environments

  • Compatible with CommScope's CWDM modules and optical splitter trays

Specifications:

  • Cable Entry Drop Port Style: Round

  • Cable Entry Main Port Style: Round

  • Cable Ports Quantity, total: 4 round ports

  • Cable Sealing Type: Compressed gel

  • Closure Sealing Type: Dome-to-base clamp with O-ring

  • Closure Style: Single-ended

  • Color: Black

  • Fiber Storage Basket Type: A4 standard size

  • Flash Test Valve: Pre-installed

  • Ground Feed-through: None

  • Mounting: Pole | Strand | Wall

  • Network Area Type: Feeder

  • Splice Tray Included, quantity: 1

  • Splice Tray Type Included: 24-way, heat shrink

  • Splicing Capacity, Mass Fusion, maximum: 144

  • Splicing Capacity, maximum: 144

  • Splicing Capacity, Single Fusion, maximum: 96

  • Splicing Capacity, Single Splice, 12 fibers, maximum: 96

  • Splicing Capacity, Single Splice, 6 fibers, maximum: 48

  • Splicing Type, Supported: Mass fusion | Single fusion

Quantity:
Add To Cart

The FOSC-450 is a single-ended, environmentally sealed enclosure for fiber management in the outside plant network. FOSC-450 gel splice closures have the same splice capacity as FOSC-400 closures and feature the same reliable and easy-to-use dome-to-base clamping system. The major difference between the closures is that the

FOSC-450’s cable sealing terminations use gel-sealing technology instead of heat shrink. The FOSC-450 features a single wrap-around gel seal with four or six cable ports. The single seal slides easily into the closure’s base for rapid, secure installation. Gel-seal cable terminations automatically adjust to cable size and shape, and require no special tools or accessories to install. It is easy to remove cables, and gel seal is completely re-usable.

The FOSC-450 closure is available in 3 different sizes. According to the application, many configurations are possible.

FOSC 450 A4 closure
The FOSC 450 A4 closure is the smallest in the FOSC 450 series having fourlarge round ports. It is intended for low fiber-count cable splices and “tap-off” splices. The FOSC 450 A4 closure comes ready to store expressed loose buffer tubes. An optical slack storage basket is available for expressed stranded fiber and ribbon fiber.
